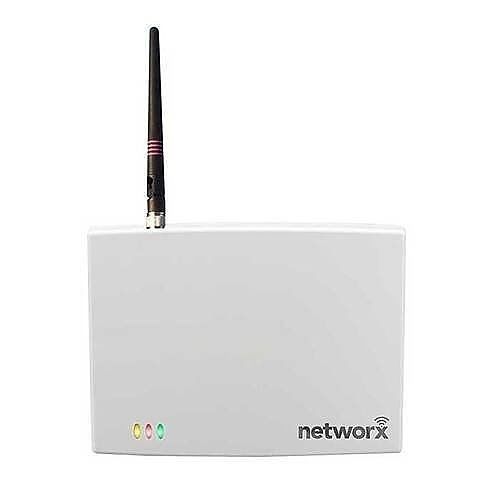

Alarm Lock AL-IM3-POE Trilogy Networx PoE Gateway Version 3
$384.00
$365.00
Product Overview
The Trilogy Networx AL-IM3-POE is a Gateway device used within the Trilogy Networx wireless system. Combines with wireless wall-mounted expanders and plug-in wireless expanders to cover more building space with a single IP address. Installation is simple, only requiring access to one RJ-45 Ethernet network cable for both communication and power.
Main Features
- Network gateway for Networx lock systems
- Power-over-Ethernet (POE) gateway – no power supply or adapter needed
- Mount within 175'' (radially) from the intended wireless lock location
- Expand your Networx lock system with up to 7 Expanders (AL-IME2-EXP) – Note expanders cannot communicate with older Gen 1 Gateways
- Expanders should be mounted in elevated areas
- Cost-effective and easier to wire than conventional gateways
- Each Gen. 3 Gateway and a maximum of seven
- Total of 99 addressable groups supported
General Information
Name: Alarm Lock AL-IM3-POE Trilogy Networx PoE Gateway Version 3
Category: Alarm Lock, Access Control, Access Control Panels & Accessories, Control Panel Accessories
UPC Code: 785026595593
Country of Origin: Dominican Republic. Country of origin is subject to change.
